Mirco-Bulk Industrial Manifolds

Carolina Piping Services offers Microbulk Manifolds that are available for LOX/LIN/LAR & CO2 Gas Systems.

Single and Dual Industrial Manifolds

Single and Dual Temperature Control Manifolds (CASH)

All components of these manifolds are inventoried for fast shipment should any problems ever arise.



• Harris Regulators

(SINGLE & DUAL CONFIGURATIONS)
A.    0-500 PSI Pressure Range (Good for CO2 Applications as well)
B.    Regulator is good to 3000 PSI Inlet Pressures
C.    At 300 PSI Inlet – 6,000 + SCFH (Per Regulator)
D.   Laser gas systems
E.   Bulk Gas Distribution Systems
F.    High purity gas application

• Rego Series Regulators

(SINGLE & DUAL CONFIGURATIONS)
A.    5-55 PSI Pressure Range
B.    40-110 PSI Pressure Range
C.    100-200 PSI Pressure Range
D.   175-300 PSI Pressure Range

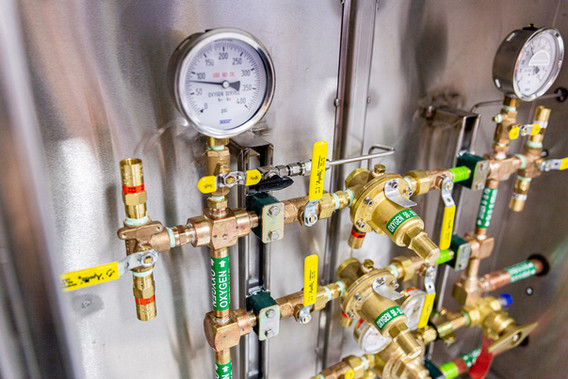

Mirco-Bulk Medical Manifolds

Carolina Piping Services offers Medical Microbulk Manifolds that are available is Stainless Steel Cabinets or Free Standing with an Awning.

These are built to order in several configurations such as Liquid x High Pressure Reserve or Liquid x Liquid.

Options for “INDOOR” piping of safeties to a central termination and exhaust are available

All components of these manifolds are inventoried for fast shipment should any problems ever arise

Product Highlights

• Designed in accordance with NFPA 99, NFPA 55
• Manifolds come complete with Oxygen Cleaning Certifications and QC Documentation
• High flow capable, up to 2000 SCFH
• WIKA analog gauges
• Rego BR Series Regulators
• Integrates with most alarm panels in medical facilities
• Suitable for indoor and outdoor installation (Indoor Must be Specified)
• Alarms can be prewired into one electrical termination point making it very easy to tie in the alarms to the main medical facility alarm panel (Must be Specified)
• Local alarm panel is also optional
• All switches and regulators are pre-set and tested at Carolina Piping Services
• Carolina Piping’s Medical Microbulk Manifolds are the perfect solution to serve critical medical facilities such as surgery centers, nursing homes, small hospitals, clinics, long term care facilities, veterinary facilities, and dental offices.



Micro-Bulk Medical Skids

Carolina Piping Services in conjunction with Chart Industries have complied Skid Packs for Medical use with Charts line of Microbulk Tanks. These skids are designed for turnkey plug and play solutions in the Medical Field.

The Medical MicroBulk Skid is designed to store and deliver liquid oxygen or nitrogen to medical facilities. The skid is designed to accept Perma-Cyl® MicroBulk Storage System tanks for primary liquid storage in sizes of 1000, 1500, 2000, and 3000 liters. It can also accommodate up to 16 high pressure cylinders for the back-up supply. All manifolds and alarm switches are mounted on the skid, connected to a central termination box, preset, and tested at the manufacturer. Field wiring from the skid to the hospital alarm panel is easy and efficient. An optional local alarm panel is also available and can be specified if required. The only piping required to be run in the field is the final tie-in from the Medical MicroBulk Skid to the medical facility source valve.

The Medical MicroBulk Skid is a perfect solution for a turnkey package to serve critical medical facilities such as surgery centers, nursing homes, small hospitals, clinics, long term care facilities, veterinary facilities, and dental offices.



Product Highlights

 • Designed in accordance with NFPA 99, NFPA 55, and CGA M-1
• Available in Perma-Cyl tank sizes from 1000 to 3000 liters
• High flow capable, up to 2000 SCFH
• Utilizes a WIKA analog gauge with adjustable low-level alarm set point.
• Maintains residual liquid level in Perma-Cyl tanks for no loss fill and purity integrity
• Optional external PB and process vaporizer packages available
• Integrates with most alarm panels in medical facilities
• Suitable for outdoor installation
• Dimensions of 84” wide x 95.5” long x 90.25” high (without storage tank)

Product Advantages:

Drop-in solution where everything is cleaned and pre-piped at Carolina Piping Services, eliminating the need for costly and time-consuming field medical piping
• Alarms are prewired into one electrical termination point making it very easy to tie in the alarms to the main medical facility alarm panel
• Local alarm panel is optional
• All switches and regulators are pre-set and tested at the factory which greatly simplifies field verification
• Tanks can be easily upgraded and changed out with minimal shutdown time
• Third Party Verification: Any individual who tests and verifies the operation of bulk medical gas at health care facilities.


Micro-Bulk Mix Gas Skids
